Sheet Metal Design – Circuit Plate

Project Overview

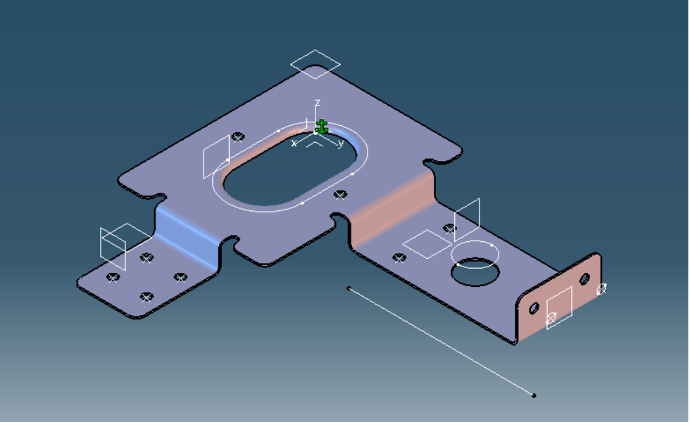

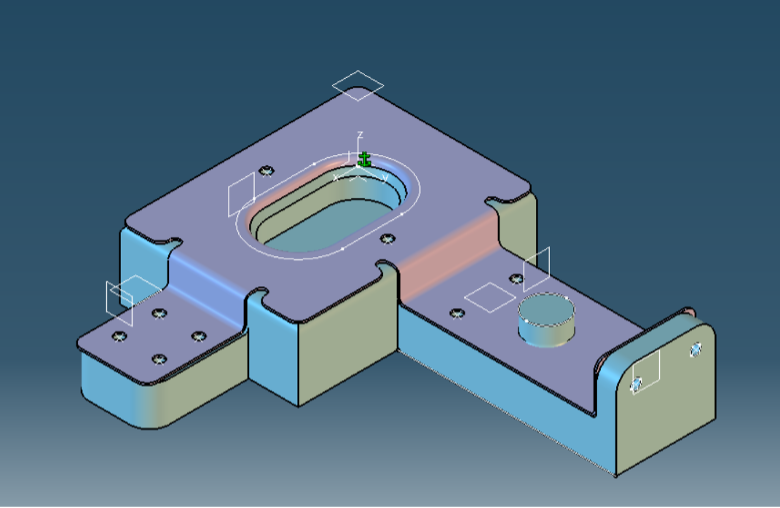

This project involves the design and development of a sheet metal circuit plate, created using CATIA V5. The component includes multiple bends, cutouts, and hole patterns, ensuring functionality and compatibility with an assembly.

Key Design Features:

• Bend Features: Precisely designed to maintain material integrity while achieving the required shape.
• Cutouts & Hole Patterns: Optimized for component fitting and fastening.
• Flanges & Tabs: Designed for structural rigidity and easy assembly integration.
• Material Considerations: The design ensures manufacturability with minimal material wastage.

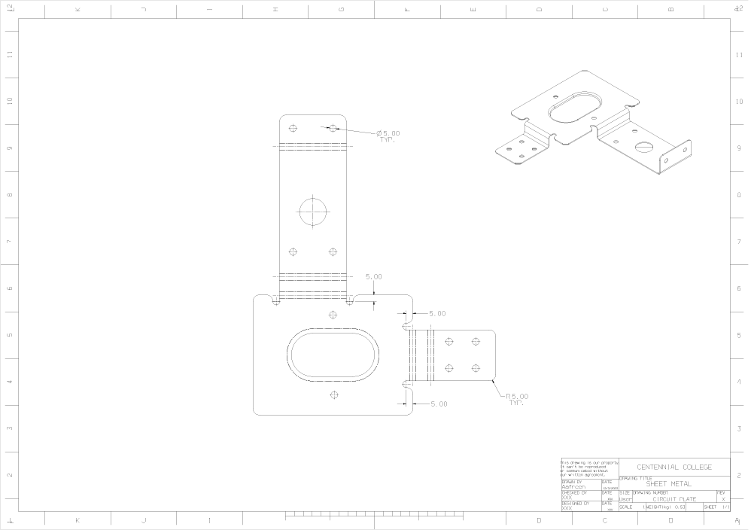

Additionally, a detailed technical drawing was created for reference, specifying dimensions and tolerances ensuring accuracy and compliance with fabrication standards.
